Name: AC Fire Pump 1580 Series Minor Repair Kits
Brand: Allis Chalmers
SKU: 11473
Availability: InStock

AC Fire Pump 1580 Series Minor Repair Kits

From $400.00

Description

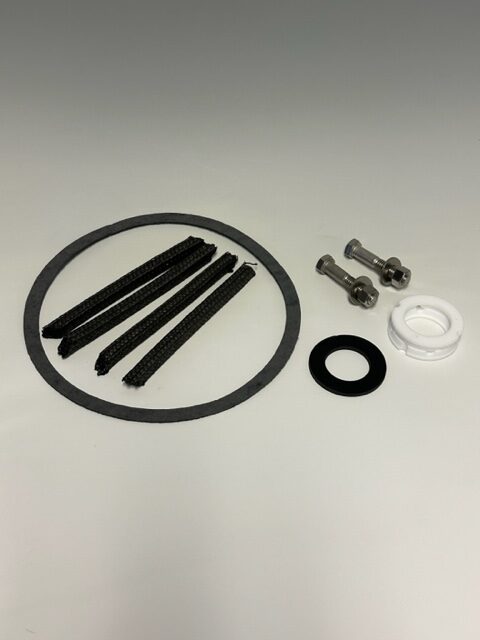

KIT INCLUDES: (4) PACKING RINGS, (1) LANTERN RING, (1) SLINGER, (2) GLAND SCREWS, (2) GLAND WASHERS, (2) GLAND NUTS, (1) VOLUTE GASKET – SOME KITS COME WITH SLEEVE GASKETS & PACKING RING BACKING
AC KIT NUMBERS: 1DN041, 1DN042, 1DN051, 1DN053, 1DN055, 1DN057, 1DN068, 1DN074, 1DN076

PACKING: AC6132, AC6133, AC6134

LANTERN RING: P84985, P84986, AC0803

VOLUTE GASKET: P57700, P48690, P80765, AC8641

SLINGER: P53550, P77320, 52-108-475-011, AC8670

GLAND SCREW: J92052, CP-611-327-480, J92271, AC8669

GLAND WASHER: 52-128-437-004

GLAND NUT: J91659

SLEEVE GASKET: 52-122-982-003, P58646, 52-122-982-001

PACKING RING BACKING: AC0592

Additional information

Weight	5 lbs
Dimensions	16 × 16 × 6 in
PUMP SIZE	1.5×1.5x7F 143JP-184JP, 1.5×1.5x7F 213JP-215JP, 2.5×2.5x7F 143JP-184JP, 2.5×2.5x7F 213JP-215JP, 2.5×2.5×9.5F 254JP-256JP, 2.5×2.5×9.5F 284JP-326JP, 3x3x7F 143JP-184JP, 3x3x7F 213JP-256JP, 3x3x9.5F 284JP-326JP, 4x4x7F 213JP-256JP, 4x4x7F 284JP-326JP, 4x4x9.5F 254JP-256JP, 4x4x9.5F 284JP-326JP, 6x6x9.5F-L 254JP-256JP, 6x6x9.5F-L 284JP-326JP, 6x6x9.5F-L 364JP-405JP, 6x6x11F-S 254JP-256JP, 6x6x11F-S 284JP-326JP, 6x6x11F-L 284JP-326JP, 6x6x11F-L 364JP-405JP, 8x8x9.5F 284JP-326JP, 8x8x9.5F 364JP-405JP, 8x8x13.5F 364JP-405JP, 8x8x18F 364JP-405JP
